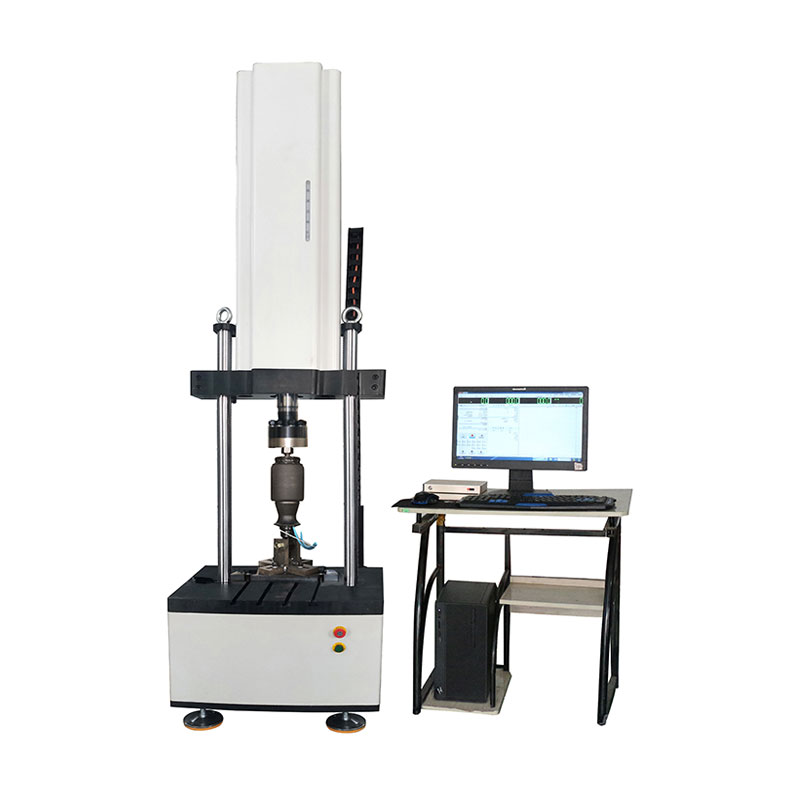

Rubber Vibration Isolator Testing Machine

Servo dynamic test bench for rubber mounts, used for static stiffness, dynamic stiffness, compression, shear and fatigue performance evaluation

Product Overview

This rubber vibration isolator testing machine adopts high-precision servo control system, designed for rubber mounts, rubber bushings and elastomeric vibration isolators widely used in automobiles, rail transit, construction and industrial equipment. It supports static compression test, static shear test, dynamic stiffness scanning, hysteresis curve test and cyclic fatigue test. The equipment can measure static stiffness, dynamic stiffness, loss factor, damping coefficient, creep and permanent deformation. It can apply combined compression-shear loading to simulate actual working conditions of rubber isolators. The built-in test software automatically collects force and displacement data, generates stiffness curves and hysteresis loops, calculates dynamic and static characteristic parameters, and exports test reports. It is widely used for new product development, formula optimization, incoming quality inspection and finished product verification of rubber vibration isolation components.

Applicable International Standards

The system is designed to comply with the following recognized testing standards:

• ASTM D945 — Standard Test Methods for Rubber Properties in Compression or Shear

• ASTM D575 — Standard Test Methods for Rubber Properties in Compression

• ISO 4666-3 — Rubber, vulcanized — Determination of fatigue resistance and temperature rise

• ISO 7500-1 — Metallic materials — Calibration of static uniaxial testing machines

Note: Specific compliance depends on model configuration, force sensor selection and customized fixture design. Customized fixtures and test schemes for extra testing standards are available upon request.

Key Features

• High precision servo drive — Stable loading for static and dynamic tests, good repeatability of stiffness and damping data.

• Optional force range — 0.1 ~ 50 kN, multiple sensor options, and can be configured according to customer test requirements, replaceable sensors for different rubber isolators.

• Multi-test mode integration — Static compression, static shear, dynamic stiffness, hysteresis test and cyclic fatigue are available on one machine.

• Combined compression-shear fixture optional — Simulate actual loading state of rubber vibration isolator under pre-compression and shear excitation.

• Dynamic sweep frequency function — Obtain dynamic stiffness and loss factor curve with frequency variation automatically.

• Rich calculation indicators — Static stiffness, dynamic stiffness, loss factor, damping coefficient, creep and permanent deformation.

• Professional data software — Curve display, data comparison, batch report export and historical data review.

• Complete safety protection — Over-force, over-stroke, overload and emergency stop protection functions.

Technical Specifications

Specifications vary by model configuration, force sensor selection and customized fixture. Special stroke, high frequency and large-load versions can be customized for rubber vibration isolation component testing.

Typical Applications

• Automotive rubber parts industry — Stiffness and fatigue test for engine mounts, suspension bushings and chassis rubber isolators.

• Rail transit sector — Dynamic performance verification of rail vehicle rubber vibration isolation bearings.

• Construction & seismic isolation field — Mechanical characteristic test of elastomeric seismic isolation bearings.

• Industrial equipment industry — Vibration isolator inspection for pumps, compressors and generator sets.

• Third-party testing laboratories — Standard static and dynamic performance test and certification for rubber isolator products.
