The tension wheel torsion testing machine is mainly used to test the static torsion mechanical properties of various tension wheels. The testing software has powerful data processing function, which can test the corresponding torque under a certain torsion angle, and can also test the corresponding torsion angle under a certain torque, and automatically generate test curves such as torque-torsion angle, torque-rotation angle, torque-time, torsion angle-time, etc. The test conditions and results are automatically saved, and random group test data and tests that meet relevant national standards are displayed and printed.

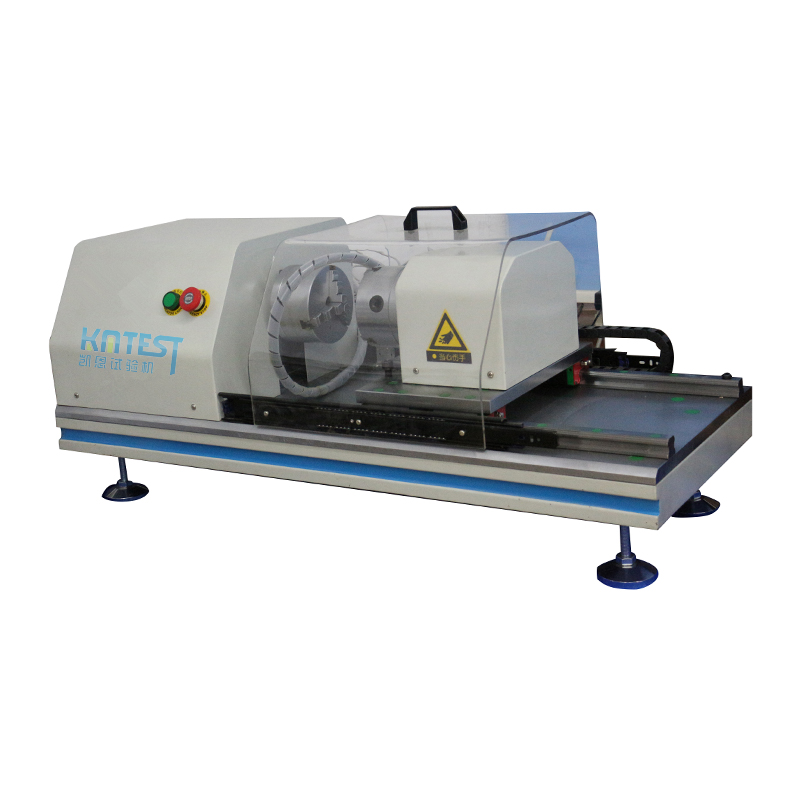

Tension wheel torsion testing machine
...
1.Maximum torque: 20Nm, 50Nm, 100Nm, 200Nm, 300Nm, 500Nm and 1000Nm (the above are conventional equipment and can be customized).
2.Torque measuring range: 1%-100% of full scale.
3.Torque resolution: 1/200000
4.Angle resolution: 0.01.
5.Test torque direction: bidirectional loading.
6.Torsion speed control range: 0.1-720/min can be customized.
7.Torque resolution: 1/300000
8.Angle measuring range: 0-99999.
9.Test stroke: 300-1000mm can be customized.
10.Relative error of indication repeatability: < 0.5%
11.Relative error of torque indication: < 0.5%/< 1%
