It is suitable for testing the bending properties and bending strength of various materials and products such as metal materials, plastic products, carbon fiber composites and glass fiber composites, which can help to evaluate their performance and reliability in practical use. Using different fixtures developed by our company, users can complete various mechanical tests of materials such as shearing, bending, tension, pressure and low cycle fatigue. This experimental machine has a powerful numerical control display system and microcomputer control system. All-liquid crystal numerical control can set the required parameters, curves, displacements and force values, which can be dynamically displayed on the liquid crystal digital display, connected with a computer printer to realize full computer control and print standard test reports. Its powerful data expansion function and * software and hardware settings flexibly realize the technical parameter check of enterprises in controlling the changes between production.

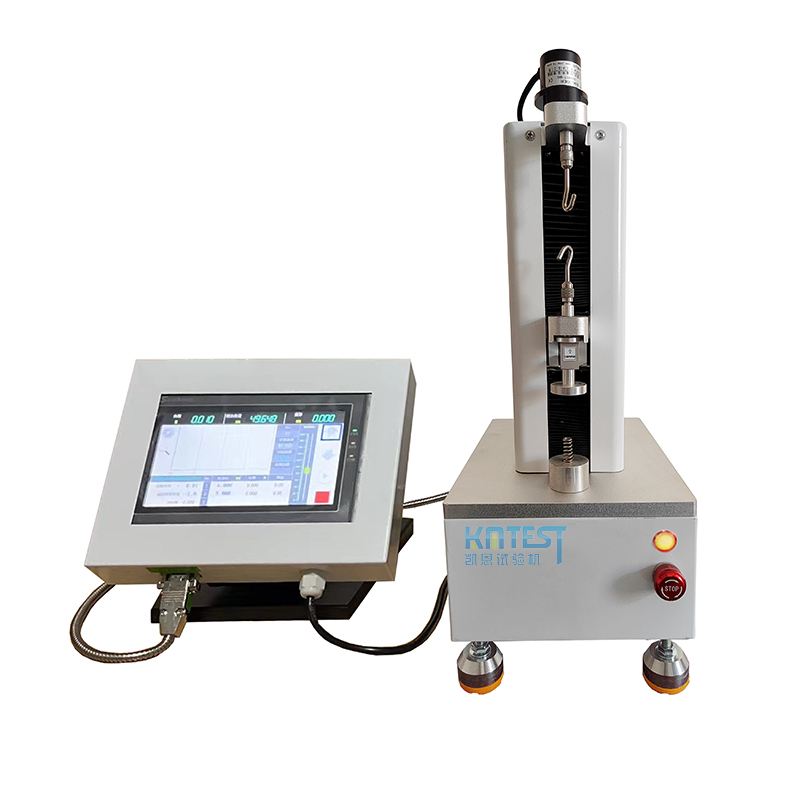

Small material bending testing machine (multi-range, multi-model optional)
1. Maximum test force: 0.1-200N (multi-range/multi-model optional)
2. Resolution of test force: 0.001N (the whole resolution remains unchanged)
3. Test machine level: 0.5.
4. Measurement range of test force: 1%-100% of full scale.
5. Minimum reading value of test force: 0.001N/0.01N
6. Repeatability error of test force indication: better than 0.5%.
7. Relative error of test force indication: better than 0.5%
8. Accuracy of displacement measurement: better than 0.5%
9. Test speed control range: 0.1-500mm/min (stepless speed regulation)
10. Accuracy of displacement measurement: better than 0.5%
11. Acquisition frequency: 1600Hz
12. Test accessories: 1 set of bending accessories.
13. power supply: 220V, 50Hz.
14. Applicable tools: various metals, nonmetals, composite materials, etc.
