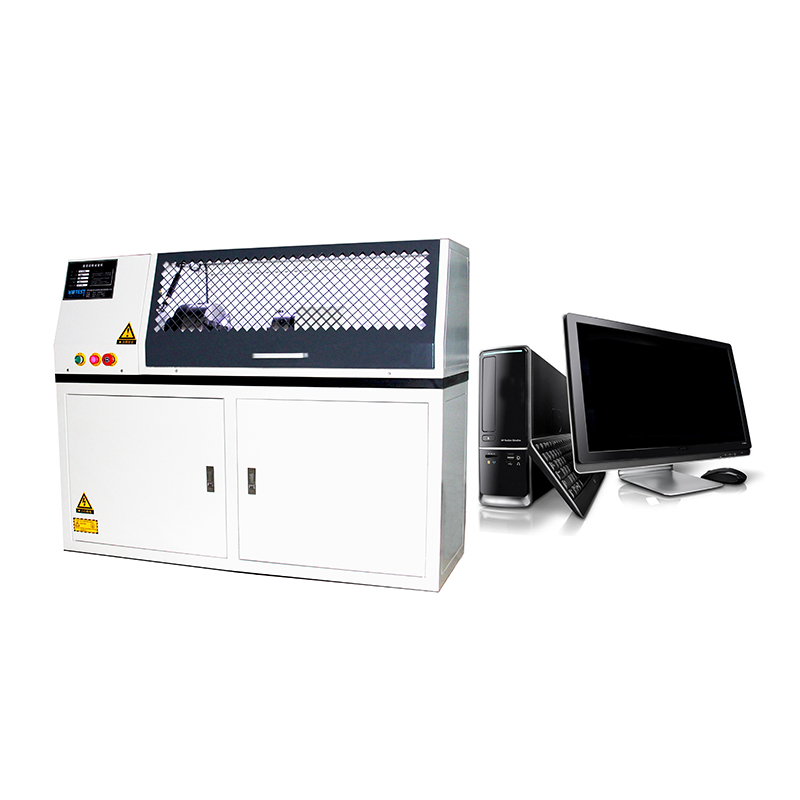

2000 N·m Tool Torque Testing Machine

The 2000 N·m tool torsion testing machine is primarily utilized by major tool manufacturers, inspection and testing organizations, and scientific research institutes. Equipped with corresponding tooling, it is capable of performing torsional mechanical property tests and torsional fatigue tests on a wide range of tools, finished products, semi-finished products, and workpieces, including wrenches, ratchet wrenches, pipe wrenches, sockets, screwdrivers, and others.ISO 6789-2 /GB/T 2611...

0–100 N·m Vertical Tool Torque

5000 N·m Tool Torque Testing M

Feature	Description
High Torque Capacity	2000 N·m, suitable for large-scale tools and heavy-duty applications
Versatile Tooling	Equipped with various fixtures to accommodate different tool types and sizes
Mechanical Testing	Measures torsional strength, yield torque, maximum torque, and torque-angle characteristics
Fatigue Testing	Capable of cyclic loading tests to evaluate tool durability and service life
Wide Application	Used by manufacturers, quality inspection centers, and research institutions

Parameter	Specification
Maximum Torque	10 N·m, 50 N·m, 100 N·m, 200 N·m, 500 N·m, 1000 N·m, 2000 N·m (above are standard models; customizable)
Accuracy Class	Class 0.5 / Class 1
Torque Measurement Range	1% – 100% of full scale
Torque Resolution	0.01 – 0.1 N·m
Torque Direction	Bidirectional (clockwise and counterclockwise)
Torsion Speed Control Range	0.1° – 720°/min (customizable)
Torque Resolution (Digital)	1 / ±300,000
Angle Measurement Range	0° – ±99,999°
Test Stroke	300 – 600 mm (customizable)
Repeatability Error (Indication)	< 0.5% / < 1%
Torque Indication Relative Error	< ±0.5% / < ±1%
Loading Method	Fully automatic
Torsion Angle Indication Relative Error	< ±0.5%
Equipment Weight	Approx. 200 kg
Torsion Accessories	Negotiable
Completeness	Complies with standard requirements
Appearance	Complies with GB/T 2611 requirements
Power Supply	220 V, 50 Hz
Applicable Tools	Various specifications of tools
