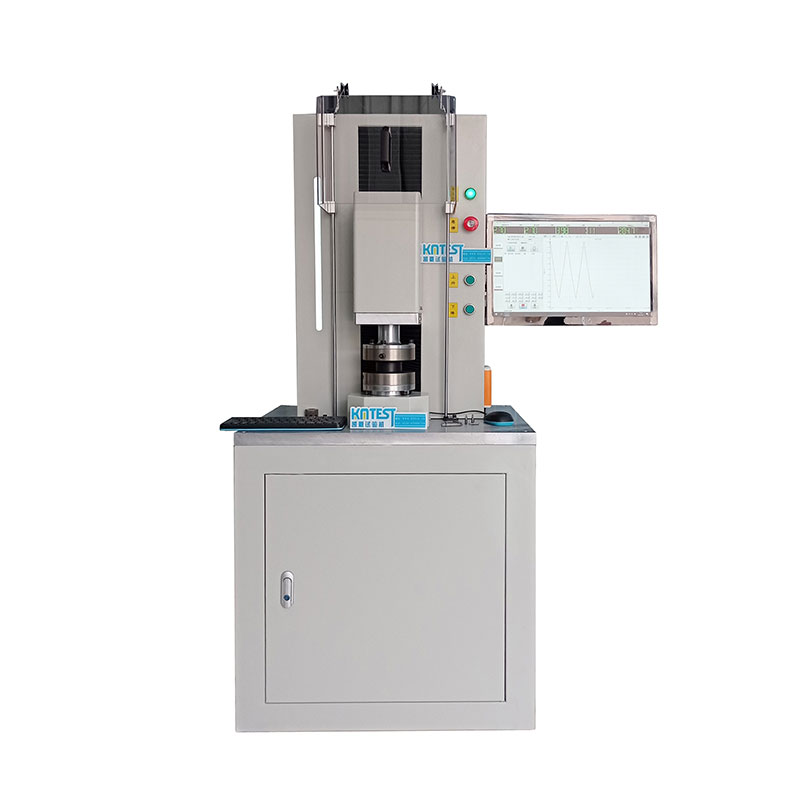

Screw Torque Testing Machine

Servo torsion test bench for fasteners, used for breaking torque, tightening torque and torque-clamp force testing of various screws and bolts

Product Overview

This screw torque testing machine adopts high-precision servo torsion drive system, specially designed for threaded fasteners such as self-tapping screws, machine screws, hexagon socket screws and bolts. It can perform screw breaking torsion test, tightening torque test, torque-clamp force test and thread anti-loosening torque test. The equipment can detect breaking torque, friction coefficient, torque coefficient and torque attenuation curve of screws. Equipped with interchangeable positioning fixtures and guide sleeves, it can avoid additional bending stress during testing and ensure the accuracy of torsion test results. The supporting software collects torque and angle data in real time, automatically generates torque-angle curves, and exports standardized test reports. It is widely used for incoming inspection, new product development and mechanical property verification of fastener manufacturers.

Applicable International Standards

The system is designed to comply with the following recognized testing standards:

• ISO 898-7:1992 — Mechanical properties of fasteners — Part 7: Torsional test and minimum torques for bolts and screws with nominal diameters 1 mm to 10 mm
• ISO 16047:2005 — Fasteners — Torque/clamp force testing
• ISO 10964:1993 — Adhesives — Determination of torque strength of anaerobic adhesives on threaded fasteners

Note: Specific compliance depends on model configuration, torque sensor selection and customized fixture design. Customized fixtures and test schemes for extra testing standards are available upon request.

Key Features

• High precision servo torsion drive — Stable and uniform loading, suitable for small and medium screw fastener torsion test.
• Wide optional torque range — 0.01 ~ 200 N·m, multiple sensors optional, replaceable for different screw specifications.
• Multi-test mode integration — Breaking torsion test, tightening torque test, torque holding test, anti-loosening cyclic torsion test.
• Modular fastener fixtures — Interchangeable positioning sleeves, adapt to M1~M10 various screw types and heads.
• Rich calculated indicators — Breaking torque, tightening torque, friction coefficient, torque coefficient and torque-angle curve.
• Real-time curve display — Torque-angle curve, torque-time curve displayed synchronously during testing.
• Professional test software — Curve analysis, batch data storage and formatted test report export.
• Complete safety protection — Over-torque, over-angle, overload and emergency stop protection functions.

Technical Specifications

Specifications vary by model configuration, torque sensor selection and customized fixture. Micro torque version and large-size fastener fixtures can be customized on request.

Typical Applications

• Fastener manufacturing — Batch inspection and breaking torque verification of various screws and bolts.
• Electronics and hardware industry — Torsion performance test for miniature screws of electronic components.
• Automotive component sector — Torque coefficient test for automotive threaded fasteners.
• Thread locker adhesive R&D — Test of anaerobic adhesive thread locking torque according to ISO standards.
• Third-party testing institutions — Standard torsion test and certification service for threaded fasteners.
