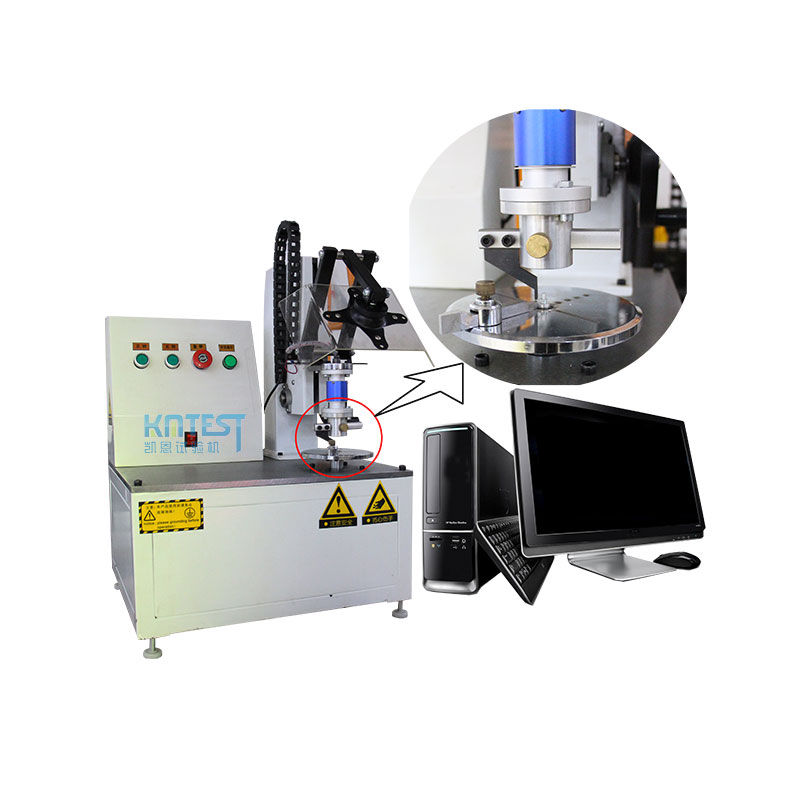

Torsion spring fatigue testing machine vertical torsion fatigue testing machine

　　Torsion spring fatigue testing machine Vertical torsion fatigue testing machine (multi-station) is suitable for torsion fatigue life test of various torsion springs, scroll springs, circlips, clocksprings, parts and materials. Kane testing machine is controlled by servo speed regulation system to run the motor, and the computer gives instructions to control the forward and backward rotation of the motor to complete the reciprocating torsional fatigue test of the sample. Pollution-free, high efficiency, wide frequency modulation range and test space, with appropriate AIDS, can complete different specifications of torsional fatigue tests. Through computer control, the machine can realize the function of automatic stop when the number of tests reaches a certain value. The machine has high integration, simple structure, low failure rate, stable and reliable performance and simple operation. Widely used in auto parts enterprises, research institutes, spring manufacturers and other industries.

No.	Parameter	Details
1	Torque Range	50Nmm, 500Nmm, 1000Nmm, 2000Nmm, 5000Nmm, 10N.m, 20N.m, 50N.m, 100N.m, 200N.m, 500N.m (Customizable)
2	Testing Machine Class	Class 0.5 / Class 1
3	Torque Resolution	0.001 ~ 0.01 N·m
4	Torsion Speed Control Range	0.1 - 720°/min (Customizable)
5	Rotation Angle Measurement Range	0 - 99999°
6	Repeatability Relative Error of Indication	< 0.5%
7	Test Frequency	0.5 - 50 Hz
8	Test Cycles	Freely settable
9	Torque Measurement Range	1% FS - 100% FS
10	Test Torque Direction	Positive and negative directions
11	Torque Resolution	1/300,000
12	Test Stroke	0 - 100 mm (Customizable)
13	Relative Error of Torque Indication	< 0.5% / < 1%
14	Relative Error of Torsion Angle Indication	< 0.5%
15	Torsion Accessories	Customizable
