Three-point bending testing machine/four-point bending testing machine tests the mechanical properties such as bending strength, compressive strength, tensile strength and compressive strength of rubber, plastic, nonmetal materials, metal materials, plates, ceramics, glass and so on. Portal structure frame, upper space tension, lower space compression and bending test, test space and test accessories can be customized according to specific needs. It can meet international standards and industry standards such as GB, ISO, JI, ASTM, DIN, JG, etc. Curves, displacements and force values can be dynamically displayed on the liquid crystal digital display, connected with a computer printer to realize full computer control and print standard test reports; Using windows operating system to dynamically display the curve of test data makes it easier and easier to operate the curve, and can perform full-electronic display monitoring such as curve traversal, superposition, separation, scaling and printing anytime and anywhere.

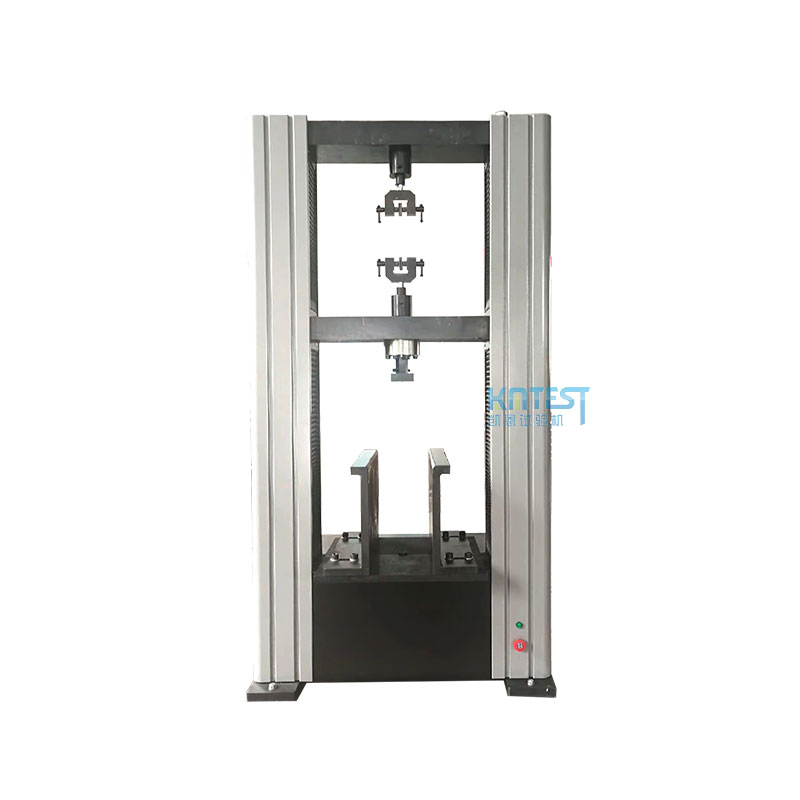

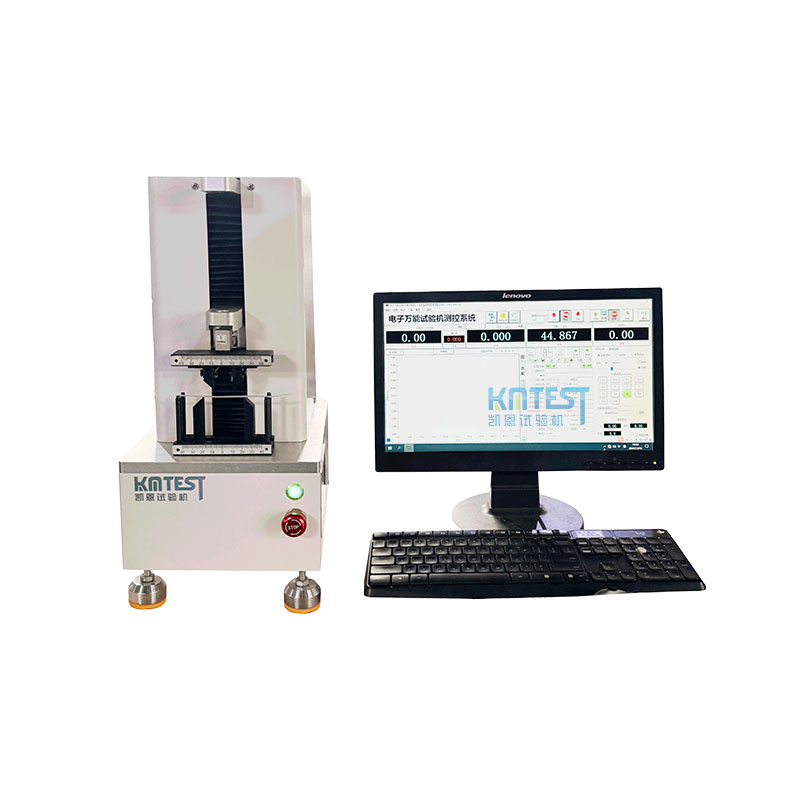

Three-point bending tester/four-point bending tester
...
1. Maximum test load: 50N-20KN.
2. Force measurement accuracy grade: 0.5.
3. Effective force measuring range: 2%-100%
4. Force measurement accuracy: within 0.5% of the indicated value.
5. Resolution of test force: 0.001N-0.001KN
6. Adjustment range of test speed: 0.01 ~ 200mm/min.
7. Speed accuracy: within 0.5% of the indicated value.
8. Deformation measurement range: 2%-100% fs
9. Safety device: electronic limit protection.
10. Overload protection: automatic protection when the maximum load exceeds 10%.
11. Distance between two rollers: 500mm (customizable)
12. Power supply motor: 220V 50HZ
